MinisorterBatch pick. Let it sort.

A manual putwall caps how big you can get. This takes the cap off, in under 25 square metres of floor.

Book a Tech Centre tour →See reference sites

How it works.

  1. Batch pick, one walk

    Pickers collect many orders in a single run instead of walking one order at a time.

  2. Scan the item

    The operator scans at the induction port. Two ports keep the machine fed without a second person.

  3. Place it on the belt

    That is the whole operator job. There is no putwall to read and nothing to remember.

  4. It lands in the right order

    The carrier takes the item to the destination for the order it belongs to, at 99.9 per cent sort accuracy.

There is no putwall and nobody working one. 1,200 to 1,500 items an hour.

How fast can it sort?

A speed test at Future Fulfillment in Melbourne, with the induction rate counting on screen. Past the first few items it holds between 1,700 and 1,950 units an hour, around the machine’s mechanical ceiling of 1,800. Sustained sortation across a shift sits lower, at 1,200 to 1,500.

Melbourne, Australia

Future Fulfillment

Future Fulfillment is one of Australia's fastest growing ecommerce 3PLs. The Minisorter handles order sortation for a client mix that changes constantly, which is the case a manual putwall handles worst.

  • 100 sort destinations
  • Over 1,000 units per hour in operation
  • Medical Logistics, Shanghai: 50 destinations, over 1,000 units per hour
The Minisorter at Future Fulfillment in Melbourne, carrying both the Future and Mushiny names, with its sort destinations racked either side
Xi'an, China

Jingyuan Supply Chain

A warehouse and distribution provider running both B2C and B2B out of one operation. Picking was the constraint: high volume, heavy manual effort and low output per person.

  • Live in 3 days, full return inside a year
  • Sorting efficiency up three times
  • Pickers cut from 20 to 7
Mushiny's film of the Jingyuan Supply Chain site in Xi'an, batch picking and sorting
Shanghai, China

Medical logistics

A medical fulfilment operation sorting units across a wide spread of destinations, where getting the right unit to the right order matters more than raw speed.

  • 50 sort destinations
  • Over 1,000 units per hour
  • Inbound sorting live in one week
Mushiny's film of a medical logistics site in Shanghai running the Minisorter
USA

GPA Logistics

A third-party logistics provider handling apparel, accessories, health and beauty and electronics, across both B2B distribution and direct-to-consumer fulfilment. They doubled the machine's destinations once it was running.

  • 160 sort destinations, doubled from 80
  • About 2,000 units per hour
  • H-shaped sorter configuration
Mushiny's film of GPA Logistics in the USA running an H-shaped sorter
View more references →

The specification.

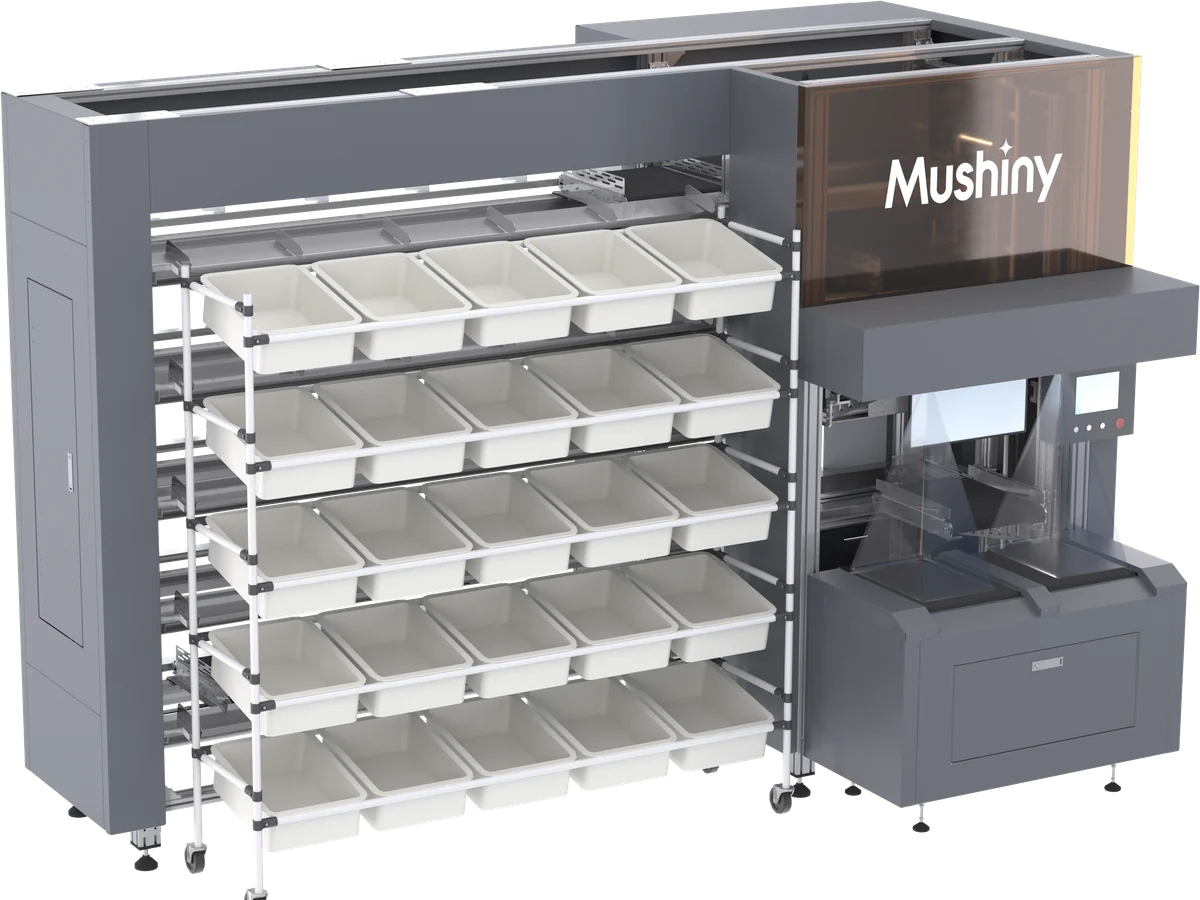

Mushiny Minisorter, the 3D Sorter Mini, with its put wall of order destinations
Sortation rate
1,200 to 1,500 items per hour
Mechanical rate
1,800 items per hour
Sort accuracy
99.9 per cent
Footprint
Under 25 m2, one carrier and two induction ports
Sort destinations
S 42 to 140, M 30 to 100, L 24 or 48
Maximum item size
S 240 x 170 x 100, M 400 x 300 x 200, L 750 x 500 x 250 mm
Minimum item size
50 x 50 x 5 mm
Item weight
S 0.02 to 5 kg, M and L 0.02 to 10 kg
Configurations
Single or double sided, customisable bin sizes
Integration
WMS, WCS, ERP and MES
Flow
Forward and reverse logistics

Sized to your order profile. The destination count follows the item size class, from 24 for large items to 140 for small ones. Bring your profile and we will size it.

Frequently asked questions

How fast does it sort?

1,200 to 1,500 items an hour, with a mechanical ceiling of 1,800. Future Fulfillment in Melbourne runs more than 1,000 units an hour across 100 destinations, which is what a real order profile looks like rather than a datasheet maximum.

How many sort destinations can it have?

It is configured to your order profile rather than fixed, and the count depends on the item size class: 42 to 140 for small, 30 to 100 for medium, and 24 or 48 for large. Bring your order profile and we will size it.

How much floor space does it need?

Under 25 square metres for one carrier and two induction ports. That is the smallest machine in the 3D Sorter range, and it is why it suits a site that cannot give up an aisle.

What size and weight of item does it handle?

From a minimum of 50 x 50 x 5 mm up to 750 x 500 x 250 mm depending on the size class, and from 20 grams to 10 kilograms. Apparel, general merchandise and returns are the common cases.

See it for yourself

Bring your order profile.

The destination count and the item size class are what size this machine. The headline rate is the last thing to look at. Bring your order lines and your product dimensions and we will size it against your operation.
